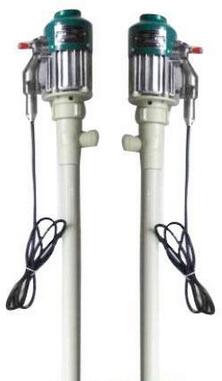

SB series stainless steel electric pump
- Brand: ???china
- Type: ???SB
- market price： USA $
- preferential price： USA $ (Price negotiable)
SB series stainless steel electric pump
SB系列不銹鋼電動抽液泵
一、產品概況
SB series plunger pump (oil barrel pump, electric pump) can be directly inserted into the material barrel
( GB/325-1991).
Can transport all kinds of oil, corrosive chemicals, other liquids.Depending on the fluid being transferred
Properties, the wet part of the pump can choose aluminum alloy,
Stainless steel, 316 stainless steel, etc.Drive motor is equipped with single-phase standard motor, explosion-proof motor,
High speed motor and other options.According to the material, the motor is different.
Models can be divided into: sb-1, sb-2, sb-3, sb-3-1, sb-4, sb-5, sb-6, sb-7.
Sb-8 series aluminum alloy, stainless steel or explosion proof.We have the details,
Welcome to request.The series of pumps can be selected according to the explosion-proof area and non-explosion-proof area, where in the explosion-proof area
Explosion-proof motors are used, which can be divided into three types.
When the use conditions contain a variety of flammable and explosive mixture, should choose the highest group grade.
SB系列插桶泵(油桶泵，電動抽液泵)可以直接插入物料桶
（適用于GB/325-1991鋼桶）中抽取桶中液體。
可輸送各種油料、帶腐蝕性化學藥水、其他液體。根據所輸送的液體
性質，泵體沾濕部分材料可選用鋁合金、
不銹鋼，316不銹鋼等組成。驅動電機配備單相標準電機，防爆電機，
高轉速電機等多種選擇。根據材質,電機不同，
型號可分為： SB-1，SB-2,SB-3,SB-3-1,SB-4,SB-5,SB-6,SB-7，
SB-8系列鋁合金，不銹鋼或防爆型。我們備有詳細資料，
歡迎索取。該系列泵可按防爆區域和非防爆區域選用，凡在防爆區域
使用配置防爆型電機，這類電機分三種機組型號，
當使用條件含各種易燃易爆混合時，應選用較高組級。
【該系列泵可輸送酸、堿、鹽、油品、飲料等介質，廣泛用于化工、石油化工、
精細化工、染料化工、環保、水處理、醫藥、食品等部門】
2.Two SB series stainless steel electric pump performance parameters table
二、SB系列不銹鋼電動抽液泵 性能參數表
| 產品 | 流量 | 流量 | 揚程 | 轉速 | 功率 | 進口 | 出口 | 材質 | 重量 |
| 型號 | m3/h | L/min | m | r/min | Kw | mm | mm | 泵管 | Kg |
| SB-1 | 7.8 | 130 | 7.5 | 10000 | 1.1 | 50 | 25 | 不銹鋼 | 7.8 |
| SB-1-1 | 6.6 | 110 | 7 | 10000 | 0.88 | 50 | 25 | 不銹鋼 | 7.5 |
| SB-1-2 | 7.8 | 130 | 7.5 | 10000 | 1.1 | 50 | 25 | 不銹鋼 | 8 |
| SB-1-3 | 6.6 | 110 | 7.5 | 10000 | 0.88 | 50 | 25 | 不銹鋼 | 7.8 |
| SB-2 | 7.8 | 130 | 7.5 | 10000 | 1.1 | 50 | 25 | 鋁合金 | 5.5 |
| SB-2-1 | 6.6 | 110 | 7.5 | 10000 | 0.88 | 50 | 25 | 鋁合金 | 5.3 |
| SB-3 | 9 | 150 | 10 | 12000 | 0.88 | 50 | 25 | 不銹鋼 | 9 |
| SB-3-1 | 9 | 150 | 10 | 12000 | 0.88 | 50 | 25 | 不銹鋼 | 9.5 |
| SB-4 | 9 | 150 | 10 | 12000 | 0.88 | 50 | 25 | 鋁合金 | 7.5 |
| SB-6 | 6 | 100 | 7 | 8000 | 0.55 | 41 | 25 | 不銹鋼 | 5.7 |
| SB-7 | 6 | 100 | 7 | 8000 | 0.55 | 41 | 25 | 不銹鋼 | 5.5 |
| SB-8 | 6 | 100 | 7 | 8000 | 0.55 | 41 | 25 | 鋁合金 | 3.8 |

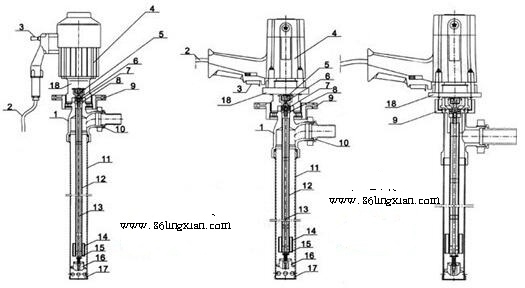

3.Three outline diagram
三、外形示意圖
