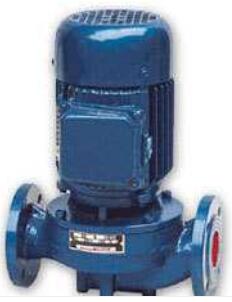

SG type pipe pump

SG型管道泵

A range of performance parameters

一、性能參數范圍

      ...

Model and significance

二、型號及意義

         ...

Iii. Working conditions

三、工作條件
The water pressure of the inlet pipe shall be no more than 3 kg/cm, and no less than 0.2 kg/cm. The water quality shall be clear water, no fiber or solid particles, and the hot water shall be soft water.Dielectric temperature: no less than 0;The ambient temperature is no more than 45;The power supply voltage is 380v, part is 220v

進口管水壓3公斤/立方厘米--0.2公斤/立方厘米，水質為清水，不應有纖維或固體顆粒，

對熱水應為軟水；介質溫度：0℃--±45℃；電源電壓380v，部分為220v。

4 main USES

四、主要用途

1. The SG series of ordinary pipeline pump used in pressurized water supply in high-rise building garden sprinkler cooling tower water water over a long distance air conditioning refrigeration flush the bathroom water cycle such as changes in temperature pressure temperature below 80 2. SGR series hot water pipeline pump is suitable for the industries such as high temperature hot water heating boiler pressure cycle temperature below 150 (3) the SGP series corrosion pipeline pump is applicable to transport food made wine pharmaceutical chemical corrosive fluids in process industries such as, using temperature below 100 4.SGB series explosion-proof pipeline pump is applicable to transport corrosive liquid, methane or coal mine fixed factories and device class a, class b, for temperature classes t1 t2, t3, t4 groups of other industrial sites with explosive mixture temperature below 80 5. SGPG series corrosion explosion-proof pipeline pump is applicable to transport corrosive liquid chemical pharmaceutical oil food such as defence industry, methane or coal mine fixed factories and device class a, class b, for temperature classes t1 t2, t3The service temperature of t4 group in other industrial sites with explosive mixtures is lower than 150
　　 1. SG系列普通管道泵,建筑增壓送水、園林噴灌、lq塔上水、遠距離輸水、空調、制冷沖洗、


       浴室等冷暖水循環加壓。使用溫度80℃以下。
　　 3. SGP系列耐腐管道泵輸送食品、制藥、造酒、化工等行業的工藝流程中腐蝕性介質，使用溫度100℃以下。
　　 4. SGB系列防爆管道泵輸送無腐蝕性液體，有甲烷或煤礦井下固定設備Ⅰ類及工廠Ⅱa、Ⅱb級，溫度組別為


       t1、t2、t3、t4組存在bz性混合物的其它工業場所。使用溫度80℃以下。
　　 5. SGPG系列耐腐防爆管道泵輸送化工、制藥、石油、食品、國防等工業腐蝕性液體，有甲烷或煤礦井下固定


     設備Ⅰ類及工廠Ⅱa、Ⅱb級，溫度組別為t1、t2、t3、t4組存在bz性混合物的其它工業場所。使用溫度150℃以下。

5 product overview

五、產品概述
This series of pipeline pump is for pipe pressurization, solve the pipeline pressure is too low and developed novel pump, than the current application of horizontal centrifugal pump has the advantages of large due to the use of advanced mechanical seal, motor spindle installed directly impeller, so the high efficient power saving compact structure small volume light weight decoration is convenient wait for a characteristic, and can according to the requirements of the head and flow rate and used in series　　

該系列管道泵是為管道增壓輸送。

  由于采用機械密封，電機主軸直接安裝葉輪，故yx率高、耗電省、結構緊湊、體積小、重量輕、裝修方便等特點，

并可根據揚程與流量需要并串聯使用。

Six SG pipe pump performance parameters table

六、SG管道泵性能參數表

產品型號	口徑	流量	揚程	電機功率	電壓	轉速
	(mm)	(m3/h)	(m)	(Kw)	(V)	(r/min)
	15	0.6	5	0.04	220	2800
15SG0.6-5
	15	1.8	10	0.12	220	2800
15SG1.8-10
	20	2	8	0.12	220	2800
20SG2-8
	20	3	14	0.25	220	2800
20SG3-14
	20	3	30	0.75	220	2800
20SG3-30
	25	2.5	15	0.25	220	2800
25SG2.5-15
	25	4	20	0.75	220	2800
25SG4-20
	25	3	30	0.75	220	2800
25SG3-30
	32	5	20	0.75	220	2800
32SG5-20
	40	5	8	0.25	220	2800
40SG5-8
	40	6	20	0.75	220	2800
40SG6-20
	50	10	7.5	0.75	220	2800
50SG10-7.5
	50	10	15	0.75	220	2800
50SG10-15
	25	4	20	0.75	380	2800
25SG4-20
	25	3	30	0.75	380	2800
25SG3-30
	25	6.5	30	1.5	380	2800
25SG6.5-30
	25	10	50	4	380	2800
25SG10-50
	32	5	20	0.75	380	2800
32SG5-20
	32	8	30	1.5	380	2800
32SG8-30
	32	15	40	4	380	2800
32SG15-40
	32	12	50	4	380	2800
32SG12-50
	32	14	80	7.5	380	2800
32SG14-80
	40	6	20	0.75	380	2800
40SG6-20
	40	9	30	1.5	380	2800
40SG9-30
	40	18	40	4	380	2800
40SG18-40
	40	15	50	4	380	2800
40SG15-50
	40	18	65	7.5	380	2800
40SG18-65
	40	15	80	7.5	380	2800
40SG15-80
	50	10	7.5	0.75	380	2800
50SG10-7.5
	50	10	15	0.75	380	2800
50SG10-15
	50	12	25	1.5	380	2800
50SG12-25
	50	15	30	2.2	380	2800
50SG15-30
	50	18	40	4	380	2800
50SG18-40
	50	16	50	4	380	2800
50SG16-50
	50	20	65	7.5	380	2800
50SG20-65
	50	25	80	15	380	2800
50SG25-80
	50	30	100	22	380	2800
50SG30-100
	65	30	15	2.2	380	2800
65SG30-15
	65	30	27	4	380	2800
65SG30-27
	65	40	40	7.5	380	2800
65SG40-40
	65	30	50	7.5	380	2800
65SG30-50
	65	50	65	15	380	2800
65SG50-65
	65	40	80	18.5	380	2800
65SG40-80
	64	45	100	22	380	2800
65SG45-100
	80	35	20	4	380	2800
80SG35-20
	80	50	30	7.5	380	2800
80SG50-30
	80	70	40	15	380	2800
80SG70-40
	80	60	50	15	380	2800
80SG60-50
	80	80	65	22	380	2800
80SG80-65
	80	70	80	22	380	2800
80SG70-80
	80	55	100	30	380	2800
80SG55-100
	100	40	18	4	380	2800
100SG40-18
	100	50	30	7.5	380	2800
100SG50-30
	100	70	40	15	380	2800
100SG70-40
	100	60	50	15	380	2800
100SG60-50
	100	80	65	22	380	2800
100SG80-65
	100	75	78	22	380	2800
100SG75-78
	100	100	60	30	380	2800
100SG100-60
	100	55	100	30	380	2800
100SG55-100
	125	80	18	7.5	380	1450
125SG80-18
	150	100	15	7.5	380	1450
150SG100-15
	150	140	26	18.5	380	1450
150SG140-26
	150	160	40	30	380	2800
150SG160-40
	150	200	50	37	380	2800
150SG200-50
	150	220	65	55.5	380	2800
150SG220-65
	150	170	180	55.5	380	2800
150SG170-180
	200	200	20	18.5	380	1450
200SG200-20
	200	200	35	30	380	2800
200SG200-35
	200	200	44	37	380	2800
200SG200-44
	200	240	60	55.5	380	2800
200SG240-60
	200	200	75	55.5	380	2800
200SG200-75
	250	380	22	37	380	1450
250SG380-22
	250	500	30	55	380	1450
250SG500-30
	250	500	30	37	380	1450
300SG400-20
	300	500	30	55	380	1450
300SG500-30
	350	800	20	55	380	1450
350SG800-20
	400	1000	18	55	380	1450
400SG1000-18
	500	1200	15	55	380	1450
500SG1200-15
	500	800	20	55	380	1450
500SG800-20

Seven figure shape

七、外形圖

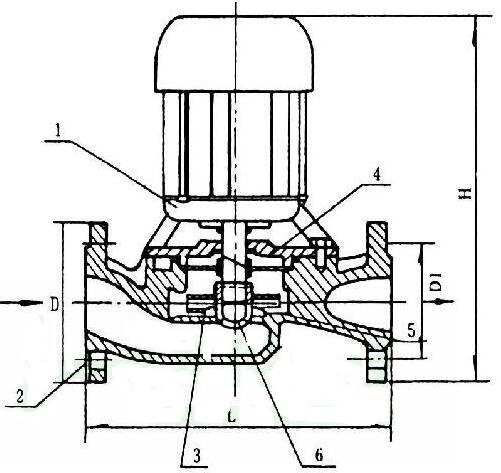

Eight structure.

八、結　構 As shown in the figure, the pump is mainly composed of motor and pump. The motor is a derived vertical motor. The pump is composed of pump body impeller mechanical seal and other parts.Add an o-type sealing ring between pump body and motor cover, and then connect the two firmly with bolts;The pump and the motor are separated by sealed water baffle ring, so as to prevent the leakage and protect the safe operation of the motor　　  如圖所示：該泵主要由電機和泵兩部分組成。電機為派生立式電機：泵由泵體、葉輪、機械密封等零件組成。 其連接過程為：電機①的加長軸上連裝機械密封④、葉輪③、并用墊圈⑤和螺母⑥緊固；泵體②和電機蓋之間加一 “o”型密封圈，然后用螺栓將兩者聯接牢固；泵與電機之間用密封擋水圈隔開，以防水外漏時，能運行。
